In the high-stakes world of vacuum metallizing—especially for high-end cigarette packaging and wine labels—productivity is measured by the minute. One of the most common bottlenecks in production is the downtime required for evaporation boat replacement.

Frequent replacements are a necessity, but they often lead to extended cooling periods and the risk of vacuum contamination. At Tempo Machinery, we have re-engineered the evaporation source to solve this. Here is how our latest design helps you speed up the process while maintaining a pristine vacuum environment.

The Challenge: The Cost of Traditional Replacement

In traditional metallizers, replacing evaporation boats is a cumbersome task. Operators often struggle with:

• Access Issues: Cramped layouts make it hard to reach the middle boats.
• Aluminum Slag: Slag buildup on side clamps makes removal difficult, requiring aggressive cleaning that can damage seals.
• Alignment Errors: Misaligned boats lead to uneven coating, forcing a re-run and wasting substrate.

The Tempo Innovation: Staggered Arrangement & Top Clips

Our Aluminum Paper Vacuum Metallized Machine introduces a revolutionary evaporation source design characterized by a staggered arrangement and a top-clip system. This isn’t just a minor tweak; it is a fundamental shift in operator ergonomics and machine efficiency.

1. Faster Access via Staggered Layout

Instead of a single, crowded line, our evaporation boats are positioned in a staggered (zigzag) pattern.

• The Benefit: This provides operators with significantly more “breathing room” around each boat. You can reach, remove, and install a boat without the risk of bumping into neighboring components or burning your hands on adjacent heat shields.

2. The “Top Clip” Advantage

Traditional side-mounted clamps are prone to “locking” when molten aluminum splatters and hardens. Our Top Clip design moves the locking mechanism away from the primary splatter zone.

• Quick Release: The top clip allows for a vertical “drop-in and lock” motion. This eliminates the need for fumbling with side bolts or specialized wrenches, cutting the physical replacement time by up to 40%.

Tips for Fast Replacement Without Losing Vacuum Quality

Speed is useless if it introduces leaks or contamination. Here is how to use the Tempo design to ensure vacuum integrity:

A. Ease of Cleaning (The Preventive Step)

Because our staggered design improves visibility and accessibility, it is much easier to perform a “quick wipe” of the evaporation source area. Our machine’s layout is specifically designed to make cleaning easier, ensuring that no stray aluminum particles interfere with the vacuum seals during the next cycle.

B. Ensuring Perfect Contact

Vacuum quality is often compromised when boats don’t sit flush against the electrodes, causing micro-arcing. The Tempo Top-Clip system provides consistent downward pressure, ensuring a perfect electrical and thermal seat every time. This consistency reduces the “trial and error” often needed after a vacuum pump-down.

C. Optimized Cooling Cycles

Our aluminum paper metallizer is designed with advanced cooling efficiency. By shortening the required cooling time for the compressor before the chamber can be opened, we allow operators to start the replacement process sooner without risking thermal shock to the vacuum valves.

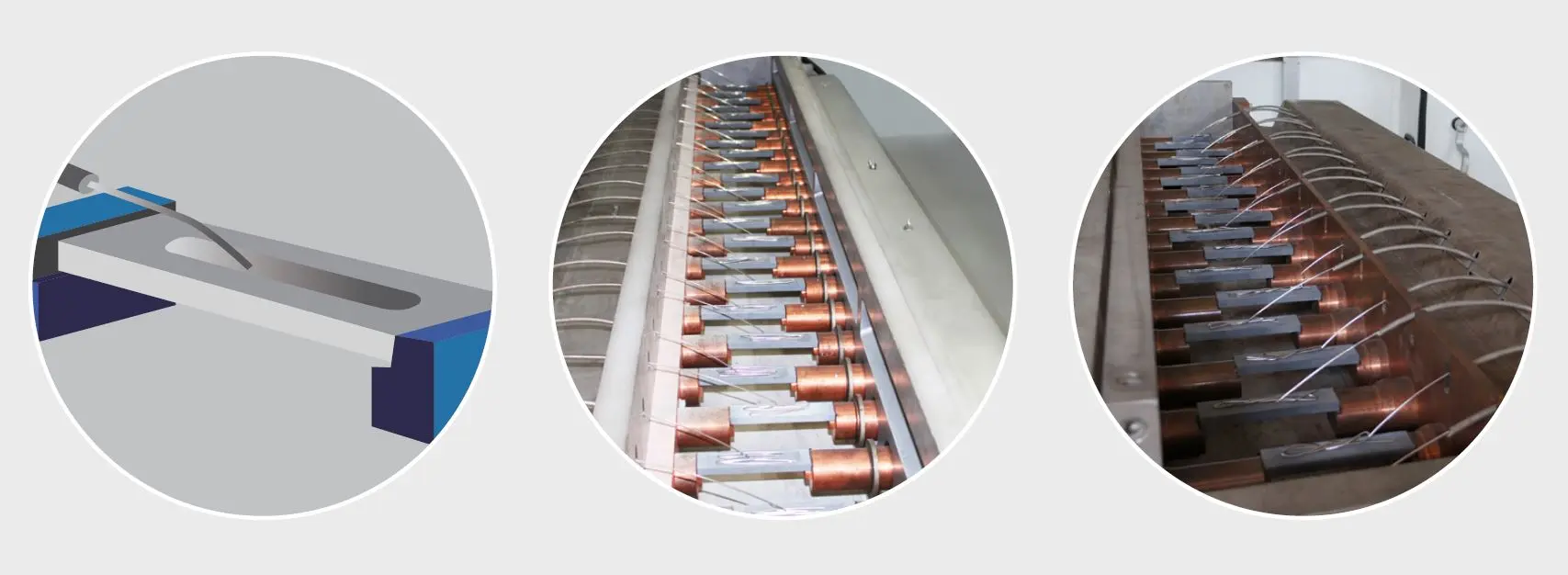

Evaporation boat replacement

Conclusion: More Up-Time, Better Quality

By combining a top-clip locking mechanism with a staggered arrangement, Tempo Machinery has transformed boat replacement from a “maintenance headache” into a streamlined routine.

This innovation not only saves time but also extends the service life of your equipment by reducing the mechanical stress on the evaporation source. For manufacturers dealing with high-volume orders for the tobacco and alcohol labeling industry, this means more rolls out the door and a significantly lower cost per square meter.

Interested in upgrading your production line? Explore the Aluminum Paper Vacuum Metallized Machine or Contact our technical team today for a customized ROI analysis.
